3.2. Example: CO2 Crystal

Tip

The sample input and output files can be found in testfiles/1-co2.

In this first example, we will try to predict the crystal structure of \(\text{CO}_2\).

3.2.1. Run the Search

Before proceeding, we should have a parameter file for \(\text{CO}_2\) molecule and an initial guess of crystal shape.

For the parameter file, you can check if it has already be provided in mics/charmm36. In this case, yes: you can find a file mics/charmm36/co2.xyz. That is. In not, you have to build the paramter by yourself. This will be introduced Example: Build Parameter File for (NHCH3)2CO.
In addition, you need an initial guess for crystal shape: the number of molecules in a cell (\(Z\)) and the crystal system. If experimental values are known, we can just use them as input. Otherwise, we have to try different values.

Step 1: Prepare an input file named sys.inp with the following content (other file names are also acceptable):

sys.inp

sys          # Result file name
sys.crystal  # Crystal components file name
         # Crystal family: 31-37
         # ABC argument: Population
          # ABC argument: Maximum generation
          # ABC argument: Scout limit
       # Number of local minima to be saved
          # Cutoff of the neighboring cells. For non-polar: 3; polar or charged: 4-6
0          # Structures with intramolecular atoms smaller than this distance will be discarded.
1          # Structures with density smaller than this value will be discarded.
02         # When two energies differ smaller than this value, they (of the same symmetry) are treated as     identical.

The texts after # are comments and can be arbitrary. The input will be explained line by line:

The folder name to save predicted crystal structures.
The name of the file that contains crystal components, cell initial guess and optionally geometrical information. It will be explained in the next step.
An integer representing the crystal system that will be kept during the search. The following input are acceptable:

Input	Unit
`31`	triclinic
`32`	monoclinic
`33`	orthorhombic
`34`	tetragonal
`35`	trigonal
`36`	hexagonal
`37`	cubic

One can consider more than cyrstal systems, for example 35 37 stands for trigonal and cubic lattice. Note that, during optimization, the symmetry may raise (say, triclinic cell may become a cubic one), but will rarely be lowered.

The population size \(SN\). See Theoretical Background for details.
The maximum cycle number \(g_{\mathrm{max}}\). See Theoretical Background for details.
The scout limit \(g_{\mathrm{limit}}\). See Theoretical Background for details.
The number of crystal structures to be saved. During the calculations, there may be a large number of generated structures. This is a upper limit of the structures to be saved.
This is a cutoff parameters for short-ranged force evaluations. Usually, 3 is suffucient. If higher accuracy is needed, a larger value like 4 can be set. However, larger values will lead to more expensive energy evaluation.
This is a distance in Angstrom. A structure with intramolecular atoms smaller than this distance will be discarded. Usually, 1.0 is a good choice.
This is a density in g/cm ³. A structure with density samller than this value will be discarded. For example, if you know (maybe from experiments) that the crystal density is around 2 g/cm:sup:3, then you can set this value to 1.7. If you are not sure, simply set it to 0.1.
This is an energy difference in kJ/mol. Two structures with energy difference smaller than this value will be discarded. Usually, 0.02 is a good choice.

Step 2: Copy misc/charmm36/co2.xyz to the current path. Then prepare the cluster file named sys.crystal with the following content:

sys.crystal

1 1.01325
co2.xyz  4
6 6 6 90 90 90
*

The first number is kind of molecules in the crystal. The second number is the pressure in bar. The ambient pressure is 1.01325 bar.
The molecule parameter file name, and its number (\(Z\)).

Tip

In the crystal file, the parameter files can be given with relative or absolute path. For example, if the water parameter file is at /home/you/abcrystal/misc/tip4p.xyz and you do not want to copy it, you can simply give the absolute path of this file in sys.cluster like /home/you/abcrystal/misc/tip4p.xyz.

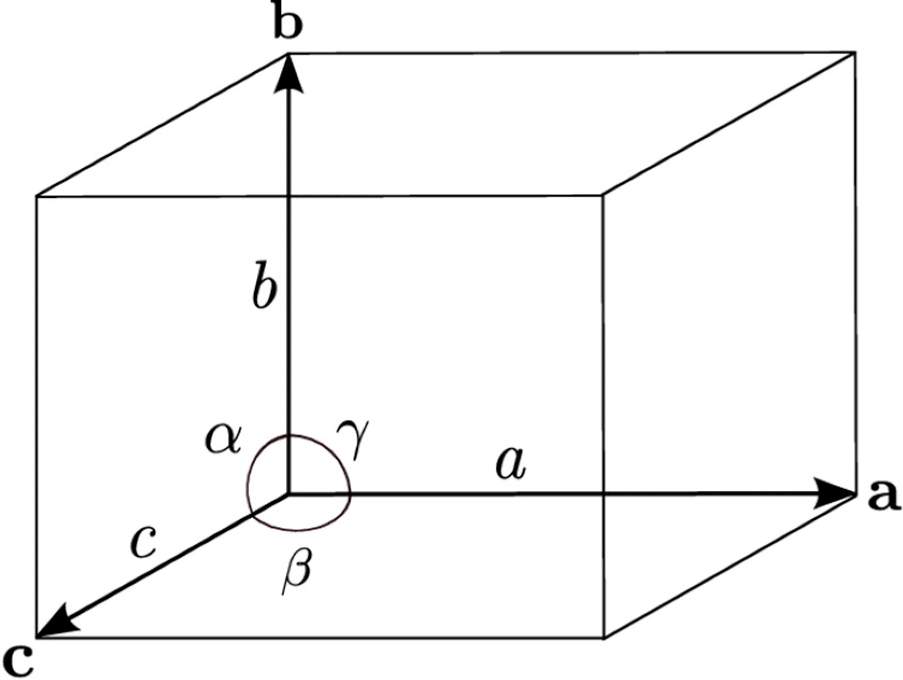

The initial guess of crystal shape: \(a,b,c,\alpha,\beta,\gamma\) (see the Figure below). Note that, the number does NOT have to meet the crystal system constraint. The symmetrization will be treated by ABCrystal.

A * is needed. Note that, abcrystal will also generate *.crystal files, but it does not end with * but with some real numbers, for example:

A crystal file generated by ABCrystal

    1.01325000
co2.xyz                                     4
53512686      5.53522121      6.00000000     90.00000000     90.00000000     90.00000000
Energy:   -107.74033984
93647424      0.95531967      2.35617388      0.00000000      0.00000000      0.00000000
68931899      0.95532737      5.49777255      0.49999755      0.00000000      0.49999760
68906741      5.32785973      0.78540539      0.00000052      0.49999714      0.49999743
38675967      0.95532317      0.78541716      0.49999807      0.49999755      0.00000019

These numbers are rigid coordinates of each molecule in the crystal. You do not need to care about them.

Step 3: Run the crystal structure prediction:

$ abcrystal sys.inp > sys.out

After a few seconds, you will find several new files:

sys.out The main output file.
sys-OPT.crystal The most stable crystal structure in ABCrystal format.
sys-OPT.xyz The most stable crystal structure in XYZ format.
sys-OPT.gjf The most stable crystal structure in GJF format.
sys-OPT.cif The most stable crystal structure in CIF format.
sys A folder containing all crystal strucures, each one having 4 files in ABCrystal, XYZ, GJF, and CIF format, respectively. They are sorted in energy-increasing order, e.g. 0.xyz is lower in energy than 13.xyz.
abcrystal*.crystal/xyz/gjf/cif The file containing the currently found most stable sturcture during the running of abcrystal. You can check the current stable structure before abcrystal terminates. If it crashes, one can use this abcrystal*.crystal to start a new search.

3.2.2. Check the Output

We can now open sys.out. You can go to Optimization Results to check the may results:

sys.out

 #         Energy          Vcell        Density      Space   ID    Bravais  Good?
         (kJ/mol)         (AA^3)       (g/cm^3)      Group         Lattice
    -107.7403       169.5847         1.7237       Pa-3  205         cP      Y
    -107.6989       169.5989         1.7235       Pa-3  205         cP      Y
    -107.6493       169.6153         1.7233       Pa-3  205         cP      Y
    -107.4886       169.6683         1.7228       Pa-3  205         cP      Y
    -106.8056       169.9081         1.7204       Pa-3  205         cP      Y
    -106.3587       170.0616         1.7188       Pa-3  205         cP      Y
    -104.1541       168.7669         1.7320     Pca2_1   29         oP      Y
    -103.3376       170.5019         1.7144       Pnnm   58         oP      Y
    -103.3130       170.5116         1.7143       Pnnm   58         oP      Y
    -102.5955       170.8538         1.7109       Pnnm   58         oP      Y
     -96.5469       168.6160         1.7336       Pbca   61         oP      Y
     -94.2686       177.0464         1.6510     P2_1/c   14         mP      Y
     -94.2302       177.0638         1.6508     P2_1/c   14         mP      Y
     -94.0207       177.1590         1.6500     P2_1/c   14         mP      Y
     -92.9351       167.4234         1.7459        P-1    2         aP      Y
     -92.4825       175.7740         1.6630     P2_1/c   14         mP      Y

Let’s see line 3:

0      -107.7403       169.5847         1.7237       Pa-3  205         cP      Y

The 1st index means that this structure corresponds to file sys/0.crystal/xyz/gjf/cif.
The 2nd number is the enthalpy: -107.7403 kJ/mol.
The 3rd number is the cell volume: 169.5847 Angstrom ³.
The 4th number is the density: 1.7237 g/cm ³.
The 5th string is the space group name international symbol: Pa-3, i.e., \(\text{Pa}\bar{3}\).
The 6th number is the space group ID: 205.
The 7th string is the Bravais lattice symbol: cP (primitive cubic lattice).

3.2.3. Visualization of Structures

The structures can be visualized in different ways.

XYZ file does not contain cell information. It only contains Cartesian coordinates and can be used in, e.g., molecular dynamics.

GIF file contains both atomic and cell information and can be visualized with GaussView. All molecules can be shown in a wrapped way.

CIF file is the standard crystal file. If can be viewed with Vesta and GaussView, but molecules may not be wrapped.

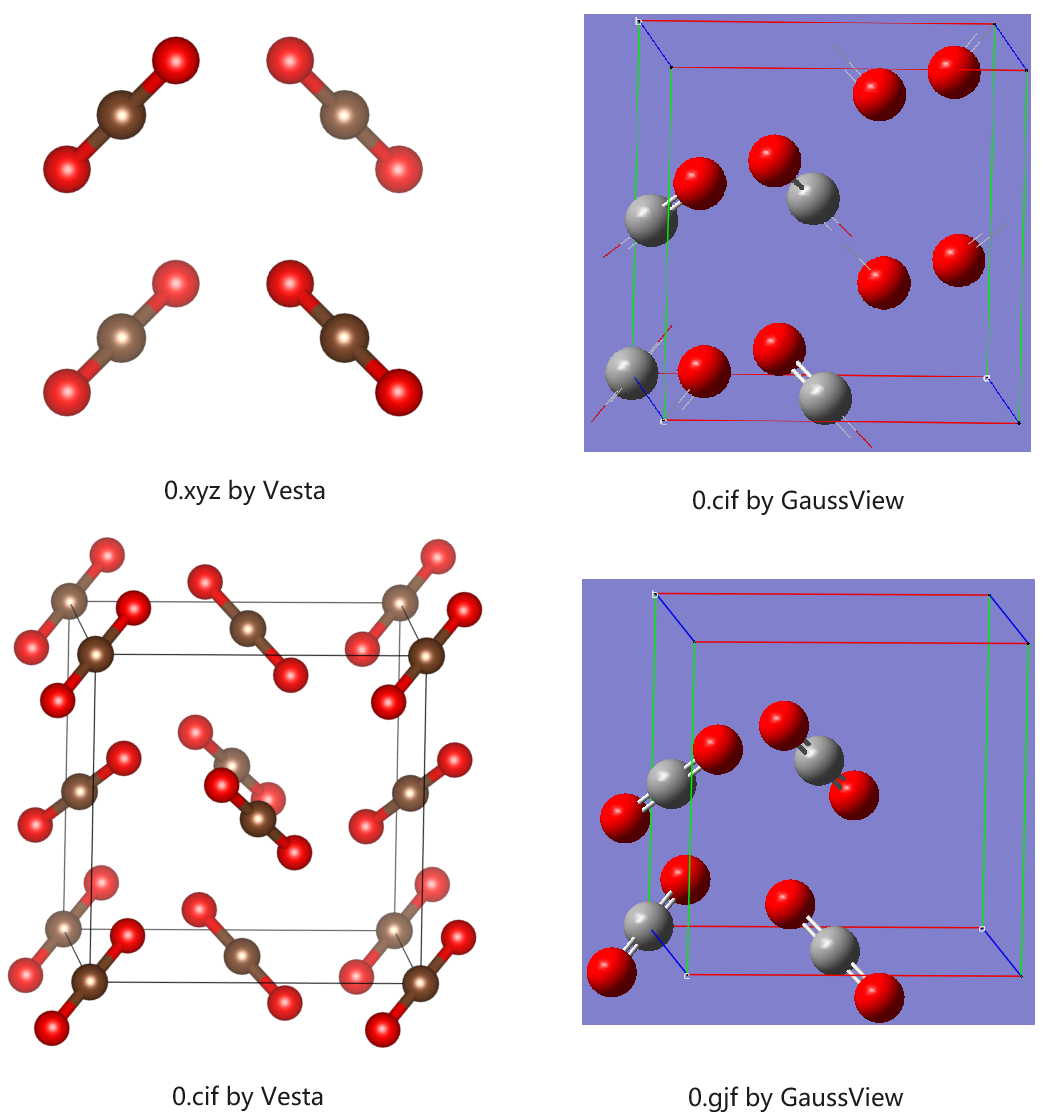

Below is a summary of visualization of structure sys/0.xyz/gjf/cif.

3.2.4. DFT Calculations

The energy in ABCrystal is caluclated with CHARMM force field. A better energy estimation way is to use density functional theory. Here, we will use CP2K to do a PBE-D3 calculation for 2 crystal structures.

Copy misc/crystal-cp2k-dft.inp to a suitable path, say, cp2k-calcs, and change the name to 0.inp and 11.inp
We want to see structure 0 and 11 energy difference. Copy sys/0.cif and sys/11.cif to cp2k-calcs.
Open 0.inp, and change @SET sysname line to

@SET sysname 0

In &SUBSYS ... &END SUBSYS, you cna add corresponding basis set and pseudopotential. In &DFT ... &END DFT, you can change the calculation method. Here, nothing needs to be changed.
In &CELL_OPT ... &END CELL_OPT, you can change pressure, symmtery constraint, etc. according to your need.
After editting 0.inp, run the calculation:

cp2k -i 0.inp -o 0.out

Run the calculation for 11 in a similar way.

When the calculations are finished, the optimized atomic position is in 0/11-pos-1.xyz, and cell information is in 0/11.out. We can compare their results:

Method	CHARMM	PBE-D3
E(11)-E(0) (kJ/mol)	13.47	15.91
Cell volume 0 (Angstrom ³)	169.58	164.33
Cell volume 11 (Angstrom ³)	177.05	178.39

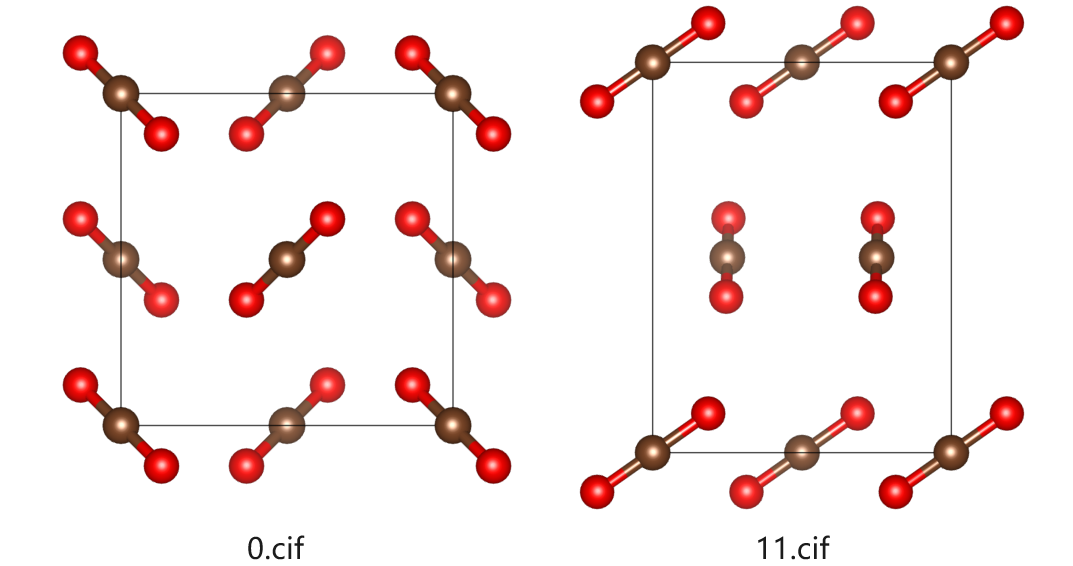

The structures are shown below:
